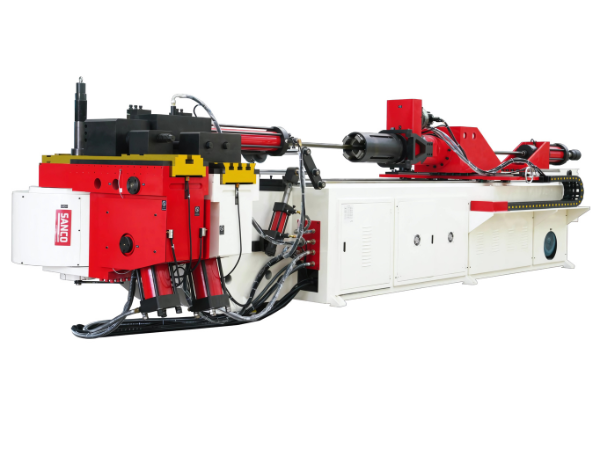

The SB-130 CNC from SANCO is fully automatic CNC mandrel pipe bender. The SB-130 is perfect for medium/large fabrication shops and well positioned for full-scale production environments. This machine has a capacity of 4.5″ OD x .25″ wall thickness

This is a right handed bender (optional right/left function) with hydraulic and electric operation. The SB-130 features double-stack tooling, touch-screen controls, network capability, and auto-lubrication.

Manufactured to the highest standards with electronic and hydraulic components from Japan, France and Germany.

• • 4.5″ Round Capacity
  • Network Capable | wired network | Wifi | 4G card for remote
  • Touchscreen Interface
  • PLC Controller (Windows XP Industry PC optional)
  • Multi-level bending/cutting
  • Booster for 1D
  • Straighten Function
  • Clockwise and Counter-clockwise direction function (optional)
  • Auto-lubrication



SB-130CNC-SR-H

CNC   Fully automatic

SR      Single radius

H        Hydraulic bending

Max bending    Φ120X6.5 mm

Mandrel length    5000 mm

Bending speed    20-30 °/s

Feeding speed    150-600 mm/s

Rotating speed    25-120 °/s

Bending precision    ±0.1°

Feeding precision    ±0.1 mm

Rotating precision    ±0.1°

Max bending degree    190°



Working light

Input data of Y, B, C or X, Y, Z

Automatic lubrication system

Pipe material: mild steel, stainless steel, copper, aluminum …

Round / square / rectangle / profile … pipes and bars

CE, ISO90001, UL, EAC marked
